Functions:

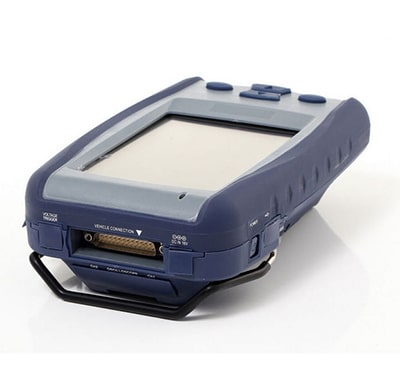

Toyota Tester II The Intelligent Tester II is designed to fully utilize the enhanced vehicle On-Board Diagnosis
function such as improvement of data refresh rate (CAN protocol),enhancement of Freeze Frame Data and
Active Test function and so on. As an aid in diagnosing electrical and electronic control system,
it is capable of monitoring and testing Electronic Control Units (ECUs) for powertrain, chassis and body systems
and their associated sensorsand actuators. Easy and fast USB connection will realize tight integration with
Personal Computer (PC) based applications and systems. The Intelligent Tester II has an ability of future e
xtension via generic memory card slot and change of the optional unit. The wireless communication with
PCs will be possible by using wireless card in the future.
• All types of Toyota, Lexus and Suzuki (make after 1996) included read code, clear code , data flow, action testing and guard against theft initialization function. Also supports OBDII.
• DENSO Diagnostic Tester-2 (DST-2) for TOYOTA & LEXUS enables you to diagnose control system for engines, ABS and Airbag, even through CAN-diagnosis communication.
• CAN communication Diagnosis DST-2 realizes more accurate diagnosis through CAN communication that speed is 50 times faster than conventional.
• Easy operation on LCD display with touch panel: 5.7inch full colour display with touch panel.
• Voltmeter and Oscilloscope not only communication basis diagnosis (Diagnostic code, ECU data monitor, Active test), but also voltmeter and oscilloscope detect alteration in the electric signal to find out the troubling part.
• Data recording to your PC saved data such as data-list can be downloaded to your PC
Specifications:
• Source voltage: DC 10-32V
• Power consumption normail: 7w(12VDC), Charging: 10w(12VDC)
• Operation temp: 0~45°C
• Storage temp: -10~ 60°C
• LCD Display: 5.7 inch
• Touch panel input: Finger or stylus pen
• Key four (up, down, two function keys)
• Built-in clock for a time stamp
• PC communication PC card slot CF x 1ch
• USB Host: 1ch function: 1 ch
• Serial 1ch ( RS-232C)
• Vehicle communication: CAN, ISO9141
• Back up power supply lithium-ion battery: 7.4v 1000mAH

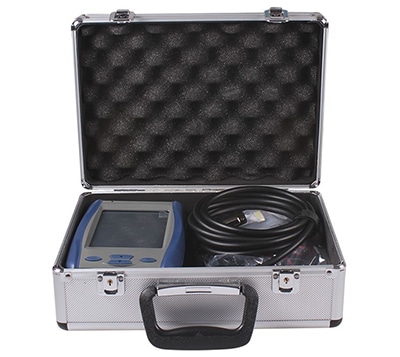

Package Content:
• Toyota IT2 Main Unit with oscilloscope cartridge
• OBDII DLC3 Cable
• AC / DC Power Supply
• Oscilloscope probe
• Voltage metre probe
• USB cable
• Cards – 3 pieces
• Storage Case
