תיאור
escription:
1, Workting Mode: Day off, Night sound control working

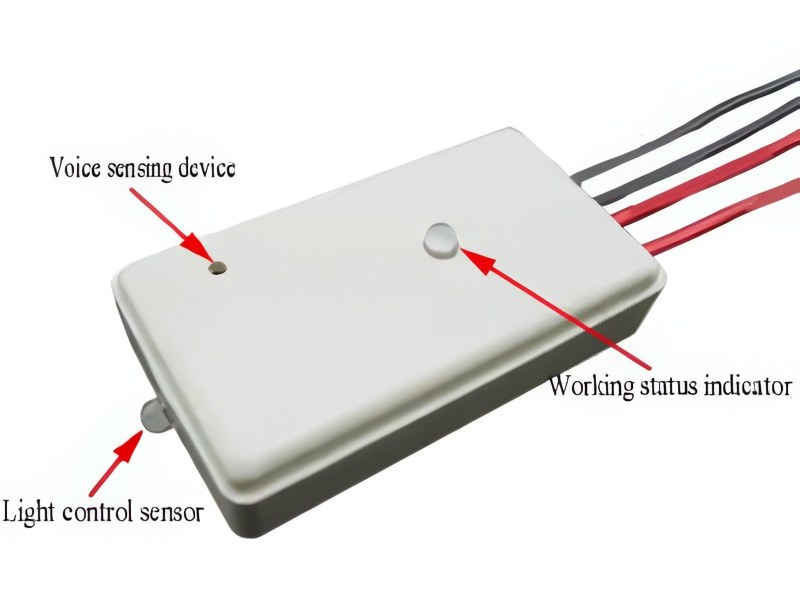

2, It can detect the intensity of the light through the photosensitive member, for lamps, it can automatically switch the lights;
3, Sensitivity can be arbitrarily adjusted according to your own requirements;
4, It can also be used for camera infrared ligh switch, or switch the day and night cameras;
5, It can also be used for security monitoring field, many electronic DIY, scientific research, factories essential.
6, It use for the equipment power must less than 30W.
Features:
Working Voltage: DC 5V~18V
Quiescent Current: about 3mA
Maximum Current: 3A
Delay Time: 10s-35s adjustment
Dimensions: 49mm x 27mm x 15mm
Workting Mode: Day off, Night sound control working
Easy to connect, but make sure it is right connected, just like the picture; and the Light control switch need to be away from the light source.
Light control switch is good for making a solar light system.
No Waterproof

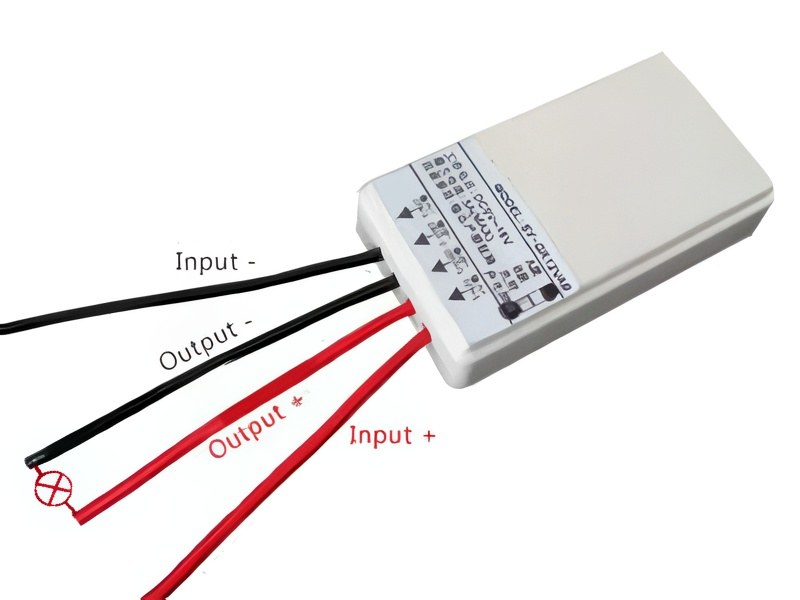

Wiring:
Long Red Cable: Input +
Long Black Cable: Input –
Short Red Cable: Output +
Short Black Cable: Output –
Notice:
1, Connecting can not be short-circuit, otherwise it will burn switch circuit;
2, Light control switch probe should be away from the fluorescent lamp, because the photoelectric tube will detect the light, once the induction of light will turn off the circuit, no light will immediately start the circuit, so that the control device can not work properly!
