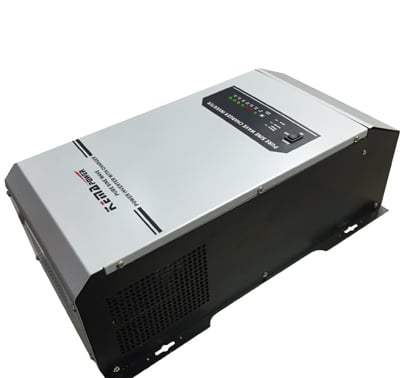

ממיר מתח סינוס טהור כולל מטען מצברים ,דור רביעי TMP מיועד למערכת סולרית עצמאית 24V הספק 3000W

Item

Model

R-PSW1K

R-PSW2K

R-PSW3K

R-PSW4K

R-PSW5K

R-PSW6K

Capacity

VA / Watts

1KVA/1KW

2KVA/2KW

3KVA/3KW

4KVA/4KW

5KVA/5KW

6KVA/6KW

Surge rating (10s)

3KVA

6KVA

9KVA

12KVA

15KVA

18KVA

Efficiency

>95% under AC mode,>88% under DC mode

Power Factor

0.9~1.0，

Static Power Capacity

Max 12W

Input

Normal voltage

220VAC/110V

220V Voltage range

184-270V+-4%

110V Voltage range

85-150V+-4%

Frequency range

50Hz/60HZ -3 +5 Hz (Auto detection)

Output

Voltage (V)

220V/110V+-10%

Frequency (Hz)

50Hz/60HZ +-0.3 Hz

Wave form

Pure Sine Wave

bypass without Battery

yes. AC MODE output from bypass

Transfer Time

10 ms (typical)

Overload capacity

DC Mode(SMPS load)

(110%<load
(125%<load
Load>150% ±10% for 20s</load</load

AC Mode(SMPS load)

by breaker

Protection

Overload

Current limit under DC mode ,Breaker under AC mode

Battery Protection

Over charge, Over discharge,DC Breaker,Alarm

Over Temperature

Variable speed fan,LED lighting and alarm

Back-Feed Protection

yes

short Circuit.

by breaker.Faul after 10 secs

Battery/Charger

AC Charge range

95-127V,  194(164)–243V

DC input

12VDC /24VDC or 48VDC,external Battery

Charge Voltage

12VDC system,Boost voltage 14-15.5V selectable for different Battery. The others are multiple

Charger Current

12-75AMP difference for different mode

Charge Manage

 digital control,Three stage charger

Display

LED

Line On/ Inverter on / Fast Charger / Float charge / Over Temp. trip / Over load trip / Power Saver on

LCD

Option. BAT % , INPUT VAC HZ, OUTPUT VAC HZ, LOAD %

Audible Alarm

Battery Low,Battery High,Over Temp. Over load,Fail,Over charge

Optional

RS232 Communication,SNMP Net Agent,Remote Control, Adjustable charge current

Power Saver

below 25W when enabled.loading checking 2 time/sec.

Working Environment

Temperature

0°C to 40°C

Noise

60dB max

Humidity

5% to 95%

PCS/CTN

1

1

1

1

1

1

Package Size

 WxDxH (mm)

625*347*309

625*347*309

625*347*309

705*320*303

705*320*303

705*320*303

Net /Gross Weight

18/20

20/22

22/24

35/38

38/41

40/43
